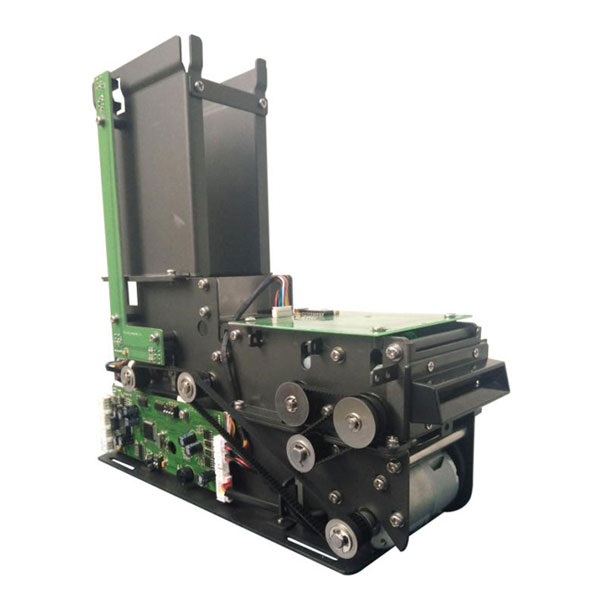

TTCE-K750 Card Dispenser
Function
Card dispenser,support mifare card reading and writing
Characters
Extended card stacker
Standard stacker can load 50 pcs card with 0.76mm thickness,but it can load 200 pcs card through extending card stacker.
Card adjustment button
Support 0.2-2.0mm thickness card
Six optional card space adjustment.
Super card dispensing ability
Special card rubbing wheel structure adn abrasion resistant rubber material ensures dispensing card successfully at one time.
Error card box
Error card box can hold 25 pcs card with 0.76mm thickness.
Smart alert status
Support card pre-empty alert,card empty alert and card dispensing trouble alert etc.
Multiple interface control
Support RS232 and TTL pulse interface.
Multiple machine communicatiion
One port of RS232 interface can control 16 set of equipment.

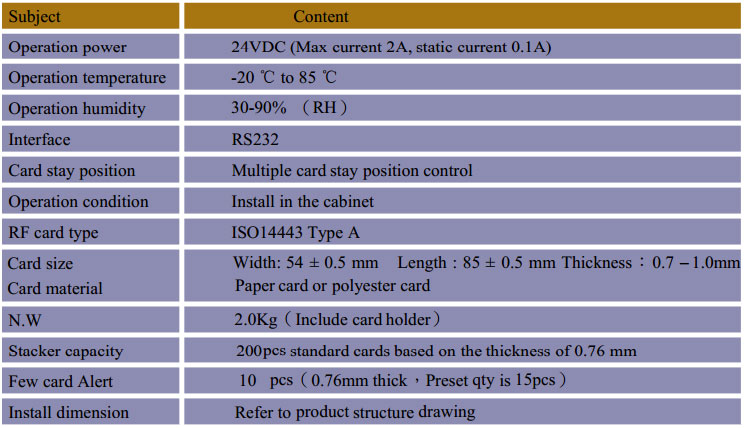

Product Parameters
Application
-Hotel room card solution
-Parking lot management system
-Automatic vending system
-Subway or public transportation card issue
-Park ticket vending system
-Card initialization issue
