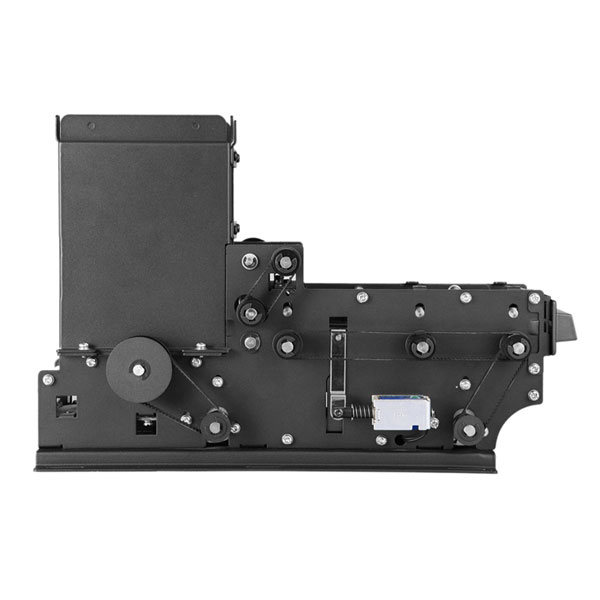

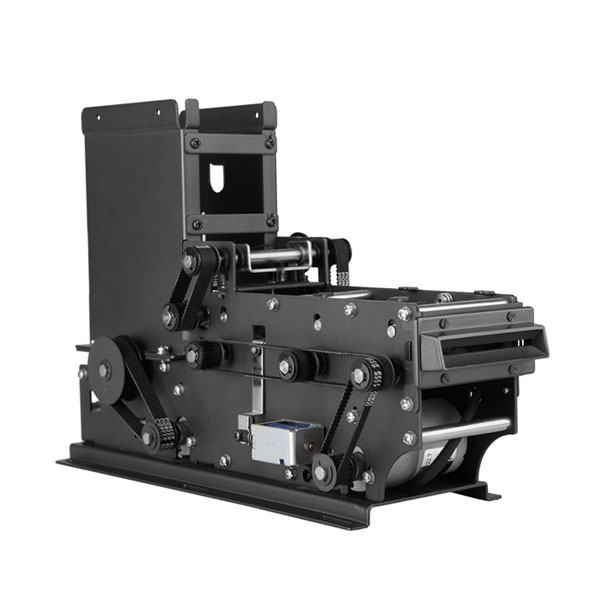

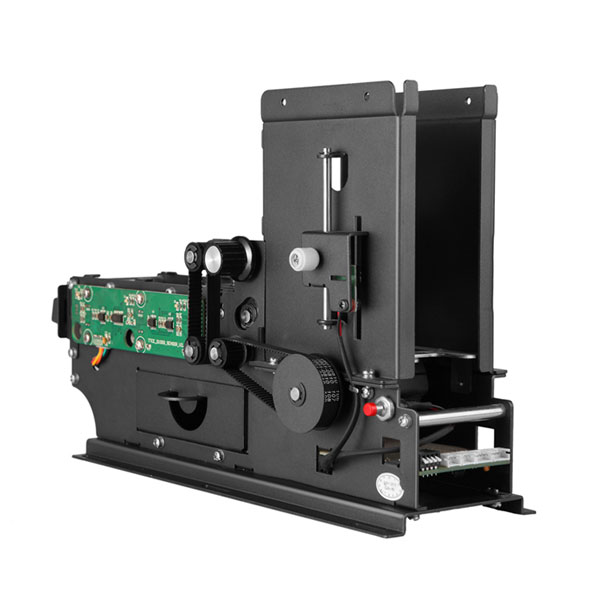

TTCE-D1000 Automatic card dispenser
Function
-Support multiple card issuing
Character
Extended stacker
Standard stacker can load 150pcs 0.76mm thickness card, through extention stacker can load 300pcs
Card adjsutment button
Support 0.2-2.0mm thickness card
Six optional card space adjustment
Extremely strong card issuing ability.
Smart alert status
Support card pre-empty,empty,card dispensing trouble alert etc.
Capturing box
Small capturing box, support load 25pcs (0.76mm thickness) card
Interface
RS232 interface
Multiple machine communication
One port of RS232 interface can control 16 sets equipment.
Specification
Power supply ：24VDC(Max current2A，static current0.1A)
Operation temperature：-20℃ to 85℃
Operation humidity :30-90%RH
Interface :TTL/RS232
Card stay position：Multiple card stay position control
Operation condition：Install in the cabinet
Card size: W 54±0.5mm * L 85±0.5mm * H0.2-2.0mm
Card material：Paper card or polyester card
Card thickness ：standard 1500pcs(base on 0.76mm thickness)
N.W：2.5Kg(Include card holder)
Size：L289.3*W98.49*H190mm
Application
-Parking lot management system
-Automatic vending system
-Park ticket vending system
-Card issuing system
