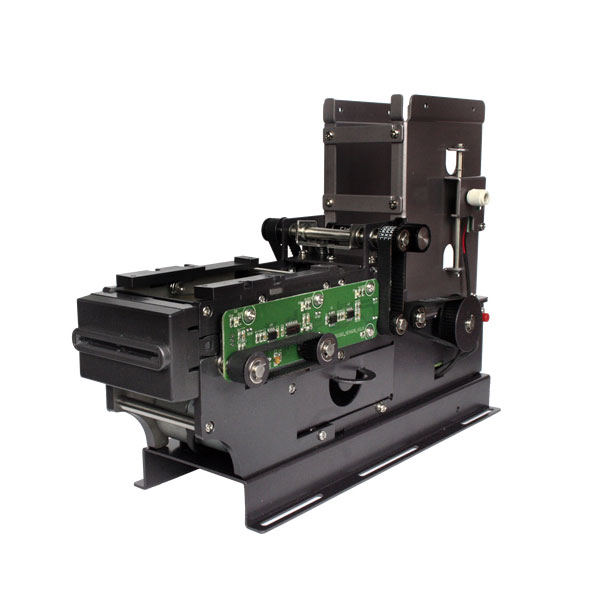

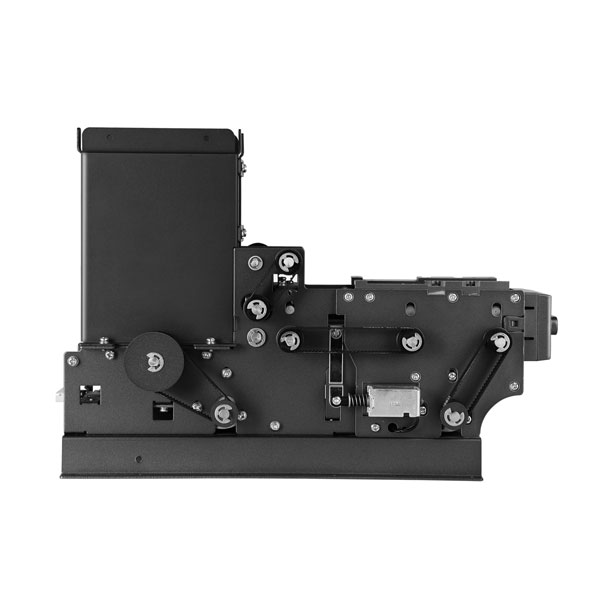

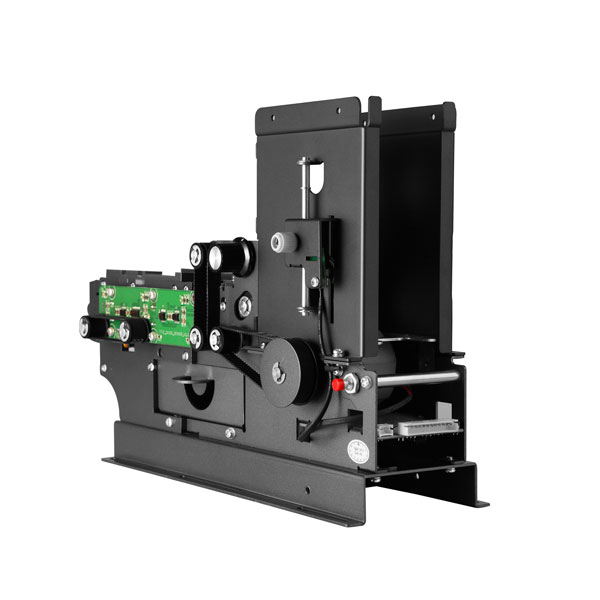

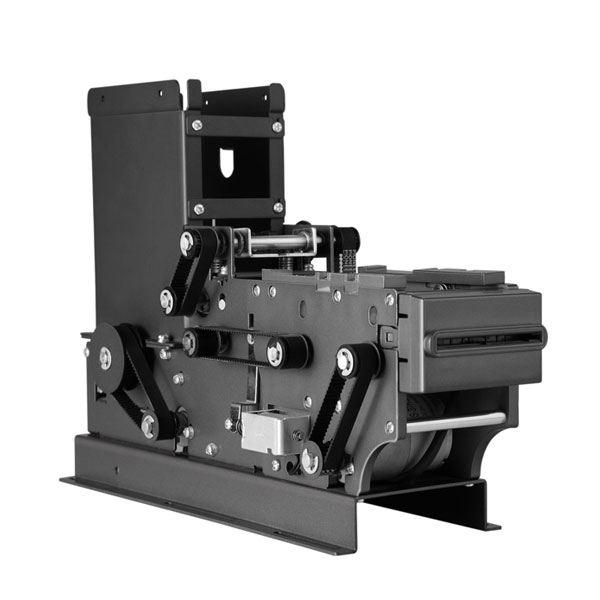

TTCE-D1800 Card dispenser with RF reader installation position
Function
-Small size, support multiple card issuing
Characters
Super card dispensing ability
Special card rubbing wheel structure and abrasion resistant rubber material ensures dispensing card successfully at one time.
Card adjustment button
Can adjust card space to support card between 0.2MM~2.0MM thickness.
Smart alert status
Support card pre-empty alert,card empty alert and card dispensing trouble alert etc.
Multiple interface control
Support RS232 and TTL pulse interface.
Multiple machine communication
One port of RS232 interface can control 16 set of equipment.
Specification
Power supply：24VDC(Max current2A，static current0.1A)
Operation temperature ：-20℃ to 85℃
Operation humidity：0-90%RH
Interface ：TTL/RS232
Card stay position ：Multiple card stay position control
Operation condition：According to communication protocol, host machine sends command to control
Card size：Card width：54±0.5mm Card length：85±0.5mm Card thickness：0.2~2.0mm
Card material：Paper card or polyester card
Capacity：Standard card 155 pieces (0.76mmthickness card)
N.W：2.8Kg(include card holder)
Size：L289.3*W98.49*H190mm
Application
-Parking lot management system
-Automatic vending system
-Subway or public transportation card issue
-Park ticket vending system
-Card initialization issue and sort
